EHX LBP-1

January 20, 2026 · Boosts

Here is a boost circuit that has been around for a long time.
It works well and is helpful in numerous ways.

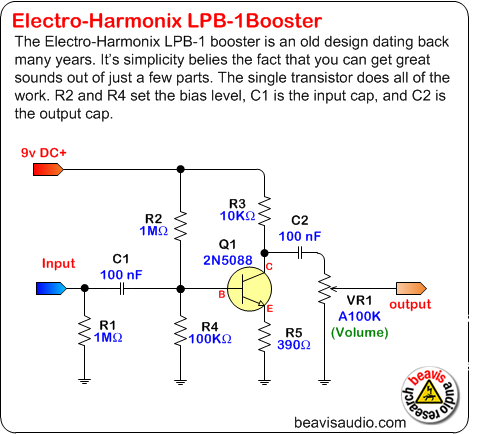

Here is a schematic that explains the circuit.

EHX LBP-1 schematic

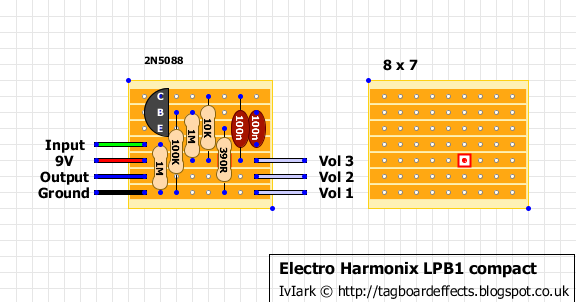

Here is a vero layout that includes a volume control.

EHX LBP-1 vero

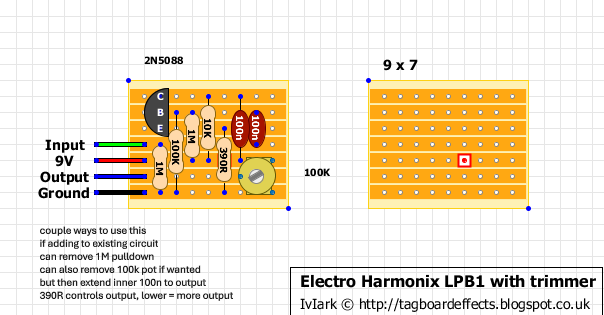

Here is a vero layout that includes a trimmer and has my notes also.
